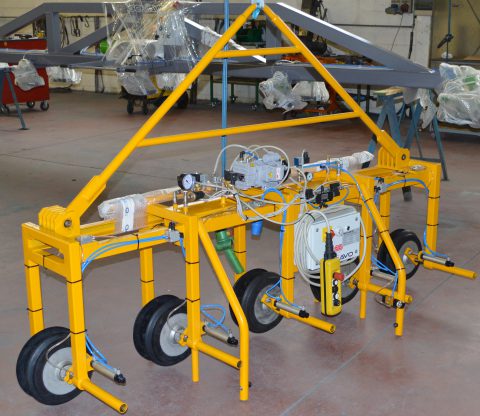

Vacuum lifters for insulating glass VC series

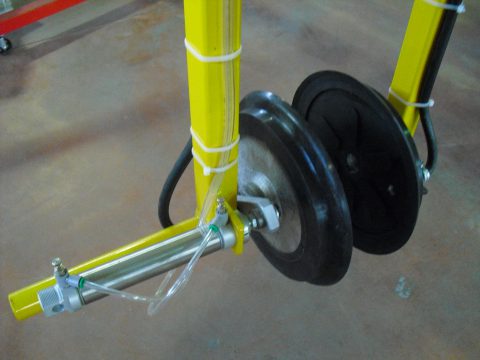

Vacuum device for insulating glass sheets handling with opposite suction cups.

Vacuum device for insulating glass sheets handling with 3+3, 4+4 or 5+5 vacuum cups.

Voltage 220 or 380 V.

Independent vacuum pump and vacuum tank to guarantee the glass grip even in case of lack of the electrical power.

Acoustic and luminous alarm.

Remote control with cable 3 m length.

Extension poles to handle the device from below.

Model: 6P-VC 8P-VC 10P-VC
N° cups: 3+3 4+4 5+5
Capacity: 540 Kg 720 Kg 900 Kg
Min glass sheet dim.: 1500×350 mm 2000×350 mm 2500×350 mm
Vacuum pump flow: 6 m3/h 6 m3/h 6 m3/h
Weight: 90 Kg 100 Kg 110 Kg
Voltage: 220 V – 50 Hz / 400 V – 50 Hz 220 V – 50 Hz / 400 V – 50 Hz 220 V – 50 Hz / 400 V – 50 Hz
Cable Length: 3 m 3 m 3 m
