Fixed vacuum lifters

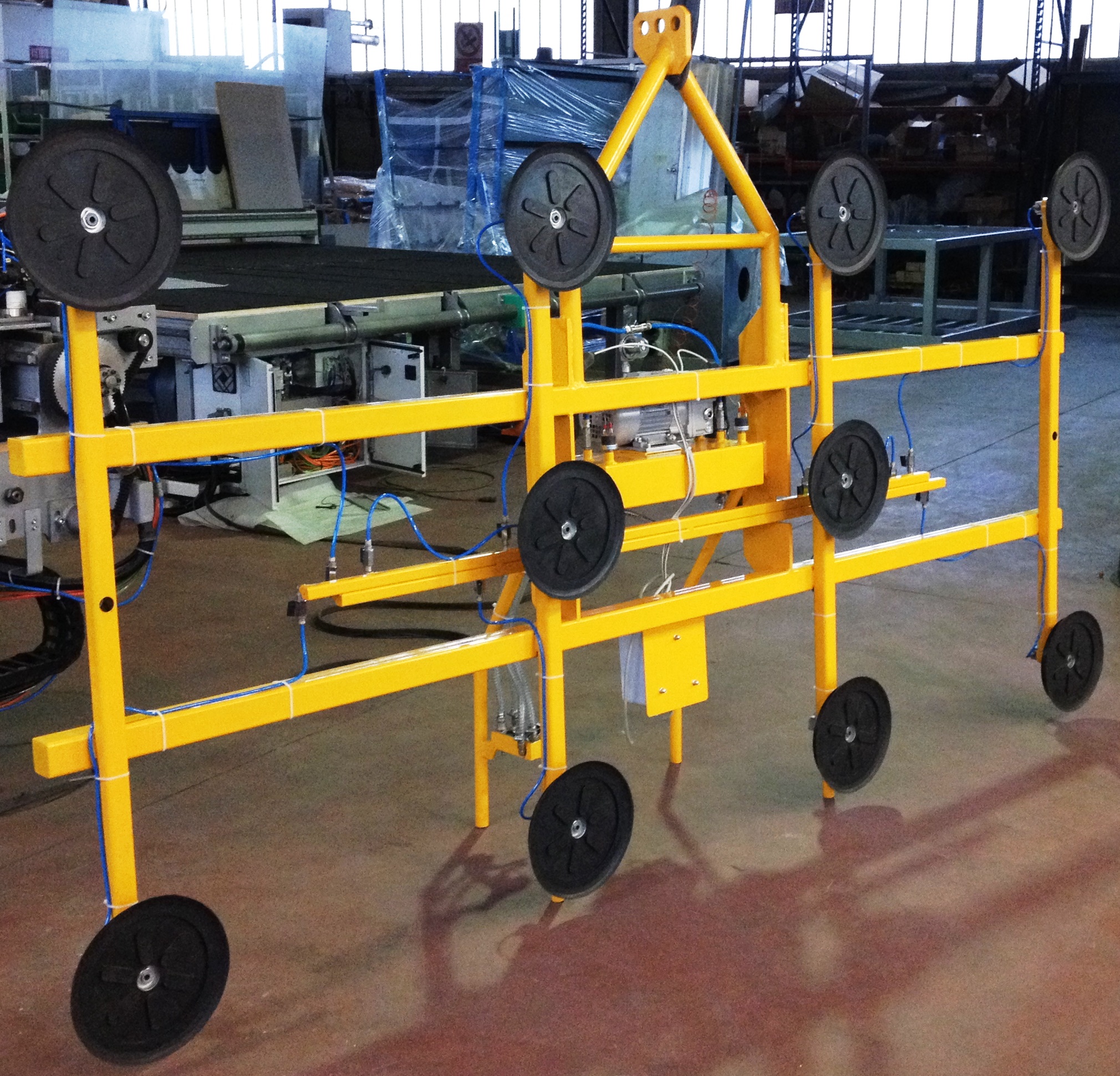

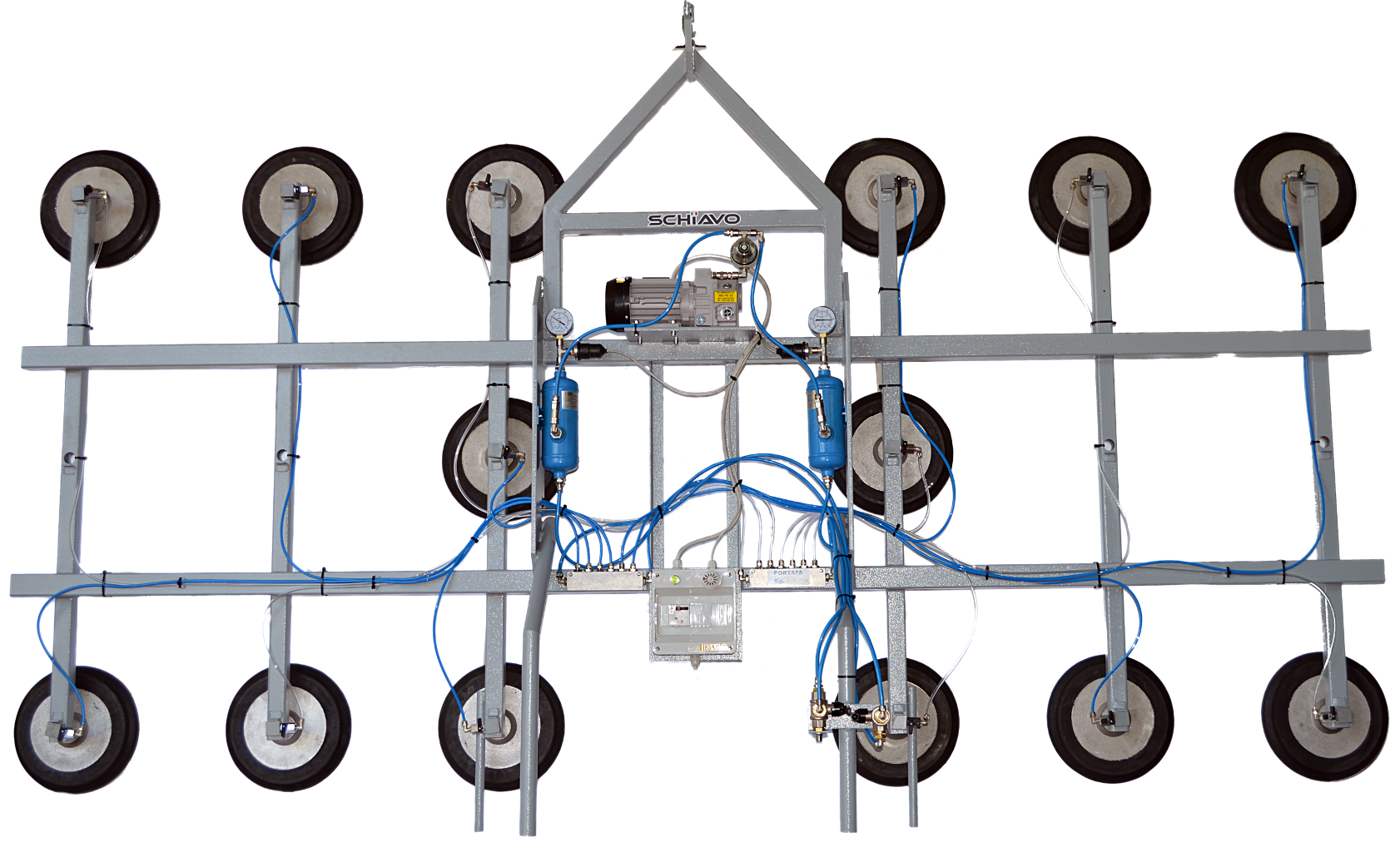

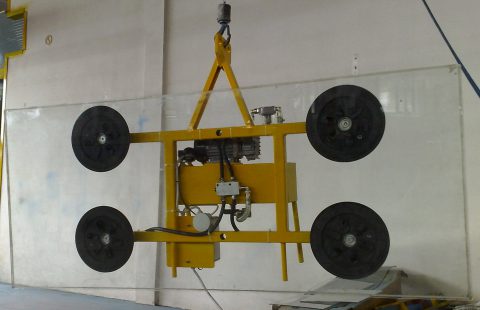

Fixed vacuum device for glass sheet lifting, with 4 to 16 vacuum pads.

Fixed vacuum device for glass sheet lifting, with 4 to 16 vacuum pads.

Independent electric vacuum pump, double safety circuit and vacuum tank to guarantee the grip of glass also in case of lack of electric power.

Acoustic and luminous alarm.

Model N° Cups Capacity (Kg)
V-4P 4 360
V-6P 6 540
V-8P 8 720
V-10P 10 900
V-12P 12 1080
V-14P 14 1260
V-16P 16 1440
