Manual vacuum lifters GMBM series

Manual vacuum lifters for glass sheets, with 2, 4, 6 or 8 suctions cups.

Vacuum device for glass sheets handling with 2, 4, 6 or 8 vacuum pads, manual rotation and manual tilting.

Voltage 220 or 380 V, to specify at the order.

Independent vacuum pump and vacuum tank to guarantee the glass grip even in case of lack of the electrical power.

Acoustic and luminous alarm.

The device stands up on the ground by itself, no frames or supports needed.

Model N° Cups Capacity (Kg)
2P-GMBM 2 180

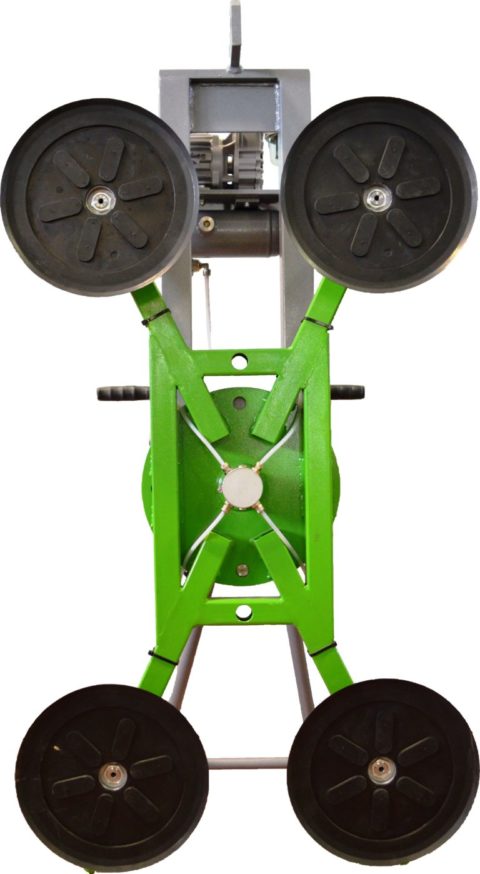

4P-GMBM 4 360

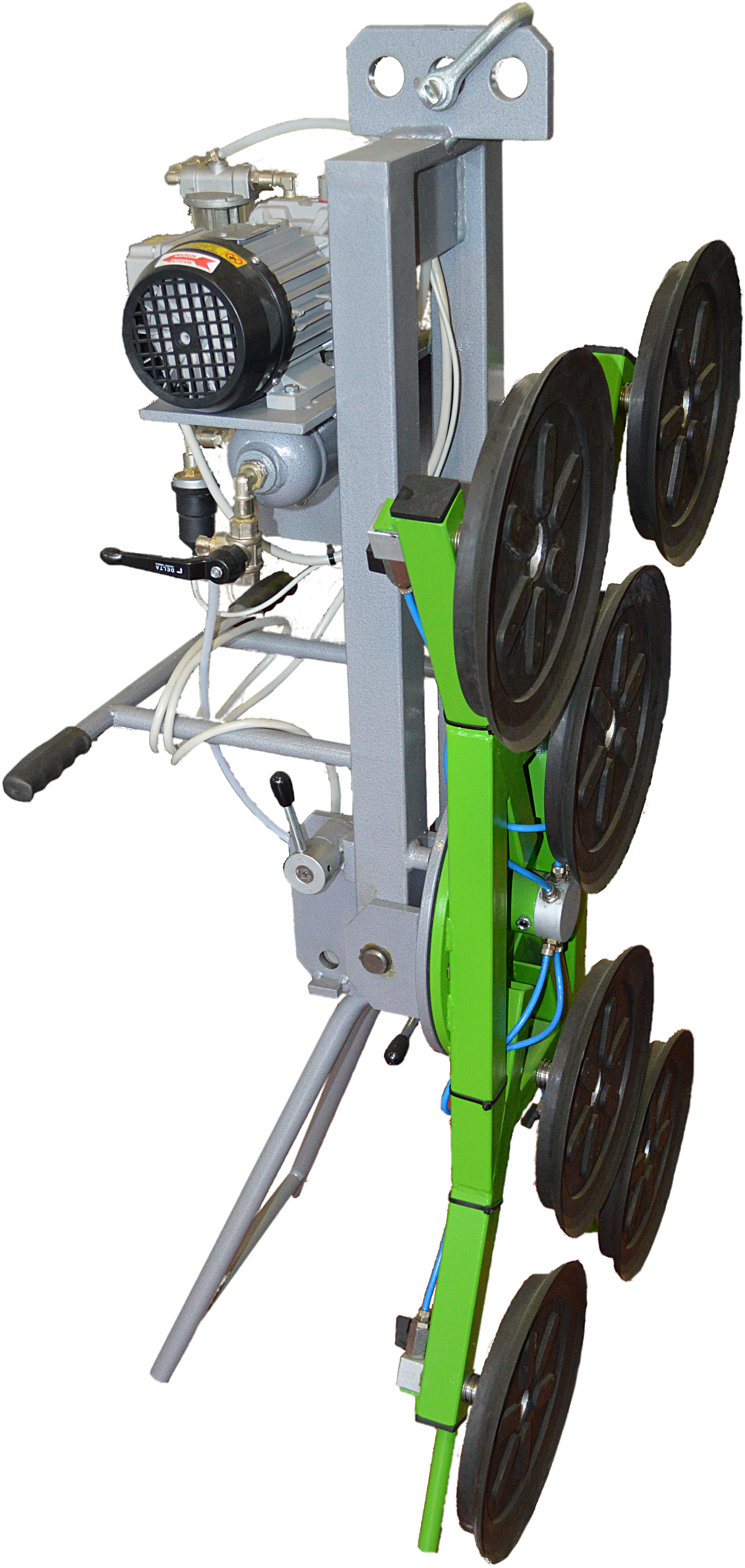

6P-GMBM 6 540

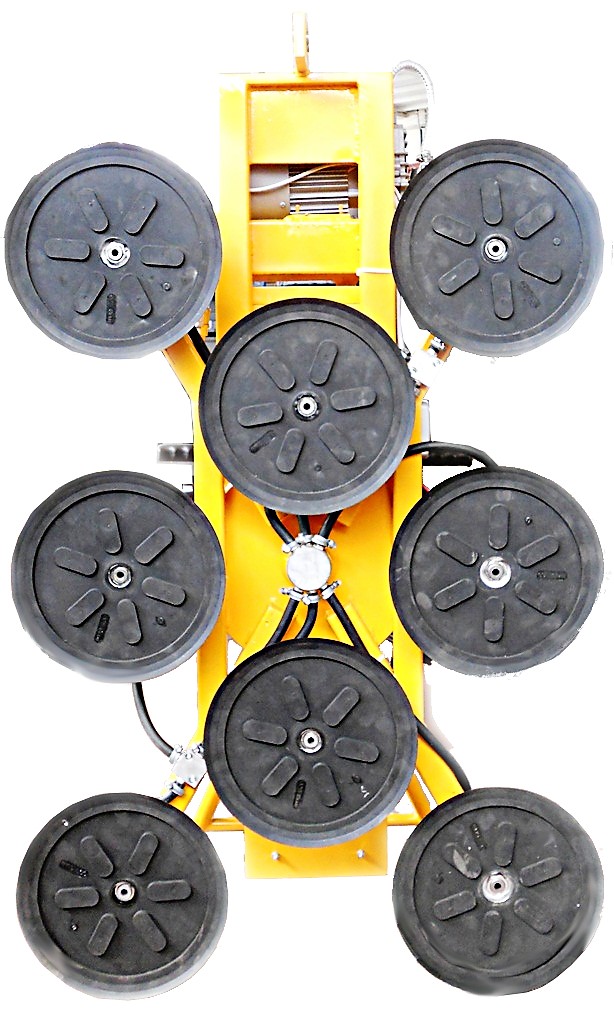

8P-GMBM 8 720
