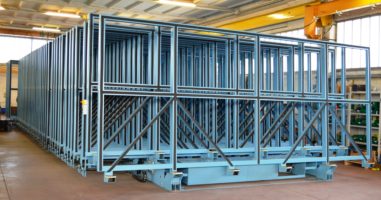

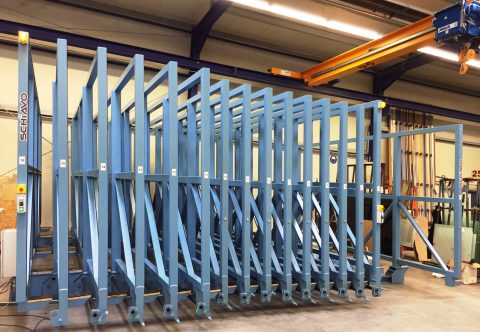

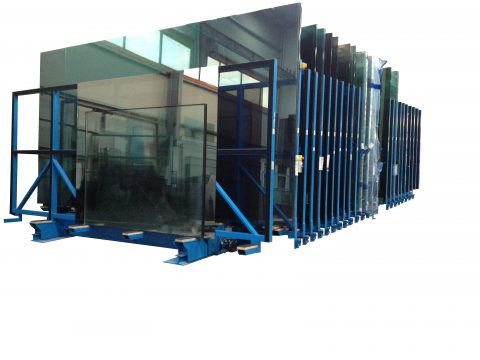

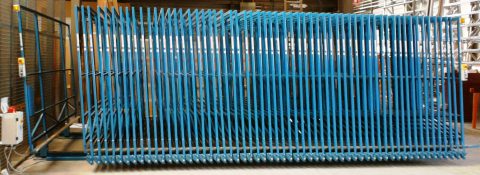

Semi-automatic lateral storage systems CLO6000-S / CLO3300-S

Semi-automatic storage system for jumbo and regular glass sheets.

Storage system for standard glass packages with lateral movement.

Selection of the drawer by pedal placed on the lateral side of the rack frame.

The storage system is composed by N° 1 gear motor controlled by inverter.

First and last rack fixed.

Opening to withdraw the glass sheet.

Electric box positioned on the last drawer.

Anti-turnover system with an underneath ball-bearing, which allows the rack to keep moving even in case of side leaning due to an unbalanced loading.

Model CLO6000-S CLO3300-S
Max. glass dimensions (mm) 6000 X 3000 6000 X 3000 6000 X 3000 6000 X 3000 3300 x 2600 3700 x 2600* 3300 x 2600 3700 x 2600* 3300 x 2600 3700 x 2600*
Package thickness (mm) 170 250 340 440 220 150 110
Capacity per rack (Kg) 6000 9000 12000 15000 3000 2500 1800
