Automatic cutting table PUMA-S

Automatic cutting table for shape cuts X,Y,C with tilting working plain.

The cutting tables PUMA series, differs from traditional glass cutting tables for the high standard of quality and technological level. The choice of mechanical, electrical and electronic products of high quality and primary manufacturing companies, provide a dynamic axes response, ensuring high performance and high precision. Through our technical department and an experience of thirty years, we have developed cutting tables with small overall dimensions that can be equipped with any optional.

Automatic cutting table for shape cuts X,Y,C.

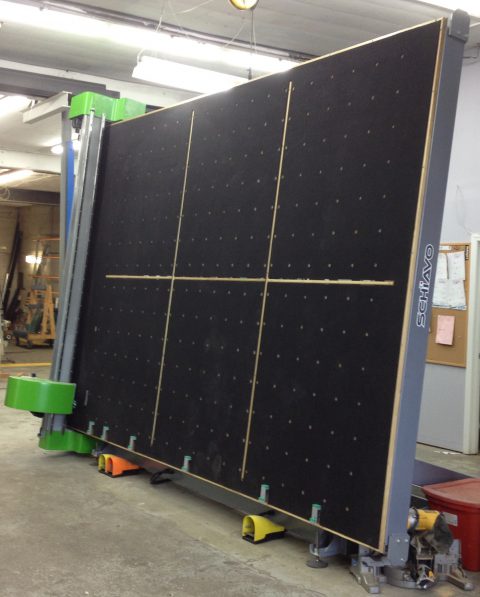

Tilting working plain and structure made up of electro-welded steel tubular pipes.

Accurately flat working plain covered of black wool felt.

Powerful air cushion system.

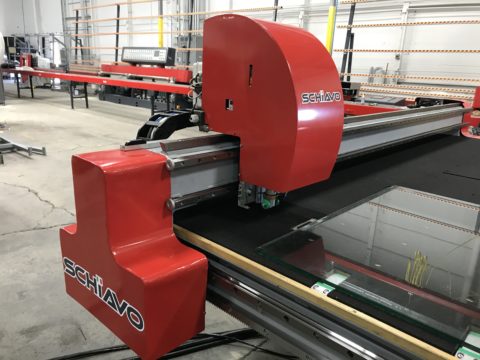

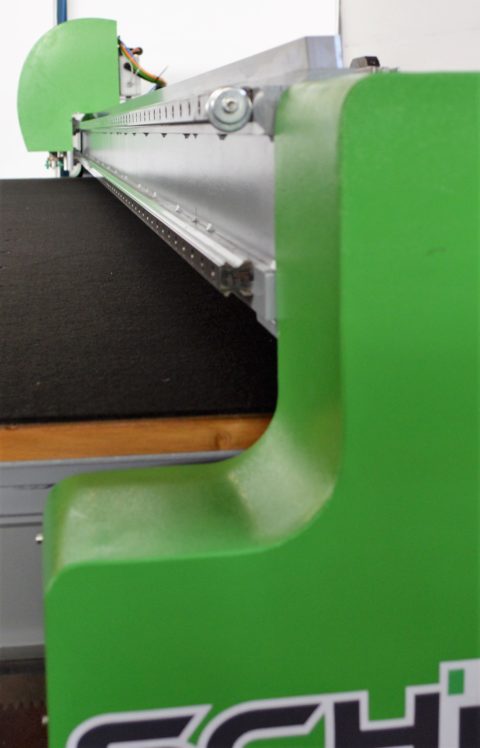

Cutting bridge made up of steel and placed transversally to the machine and it is set in motion by Brushless motors.

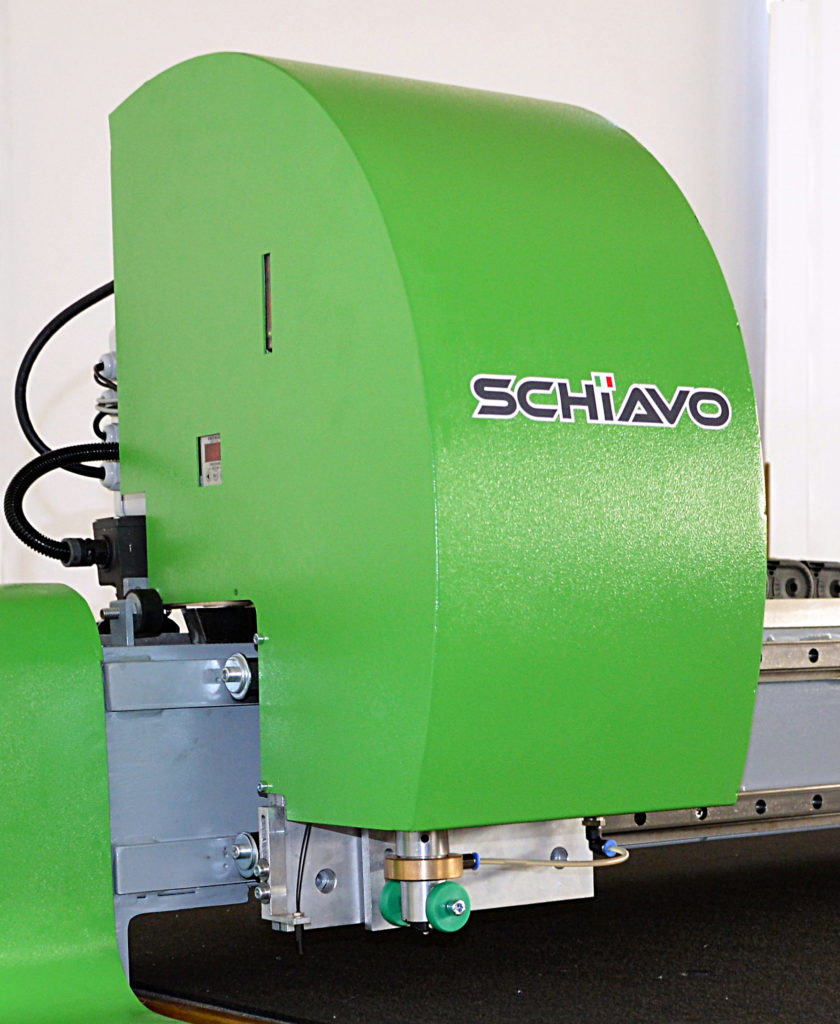

Cutting pressure is adjusted in accordance with glass thickness through the operator.

Lubrication system for cutting tool.

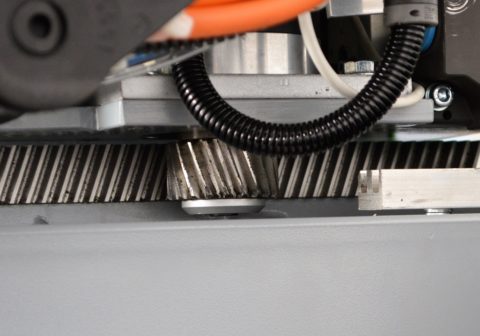

All the movement are controlled by CNC numerical control and the transmission is by rack and pinions.

N° 3 breaking bars (2 transversal + 1 longitudinal) activated pneumatically.

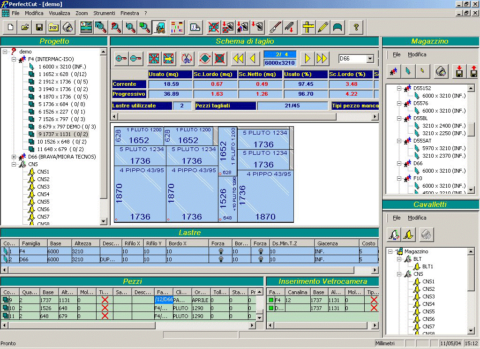

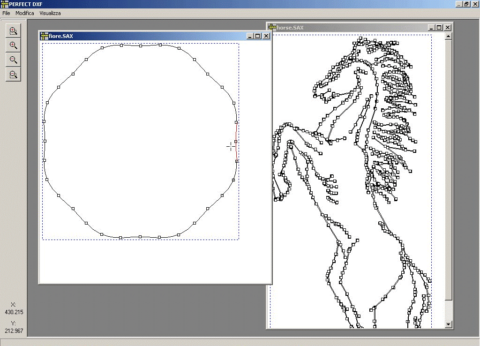

PC and cut optimization software by Perfect Cut included.



Maximum glass dimensions: 3700×2600 mm
Working height: 900±20 mm
Thickness: 3-19 mm
Tolerance: ± 0,2 mm
Speed: 130 m/min
Air fan: N° 1
Tilting: Hydraulic
Breaking Bars: 2+1
Air compressed: 6-7 bar
Standard voltage: 400 V – 50 Hz
Power: 9 Kw
Weight: 1500 Kg
Double zero: optional
PC and workstation: Included
Optimization software: Included
