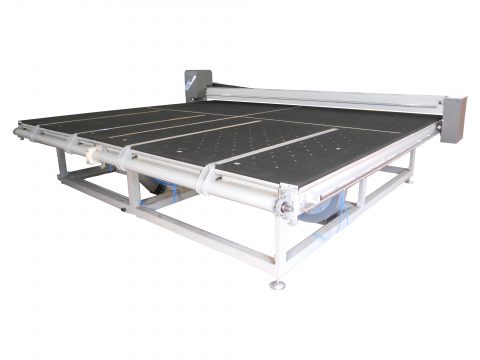

Automatic cutting table for shape cuts X,Y, C with tilting arms to load glass sheets
Automatic cutting table for shape cuts X,Y, C.
Structure made of electro-welded steel tubular pipes.
Accurately flat working plain covered of black wool felt. Powerful air cushion system.

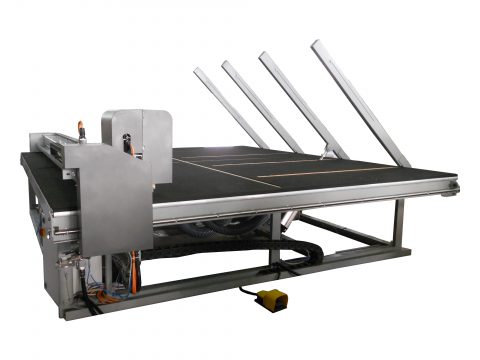

4 pneumatically-activated tilting arms to load glass sheets on the working surface of the table.

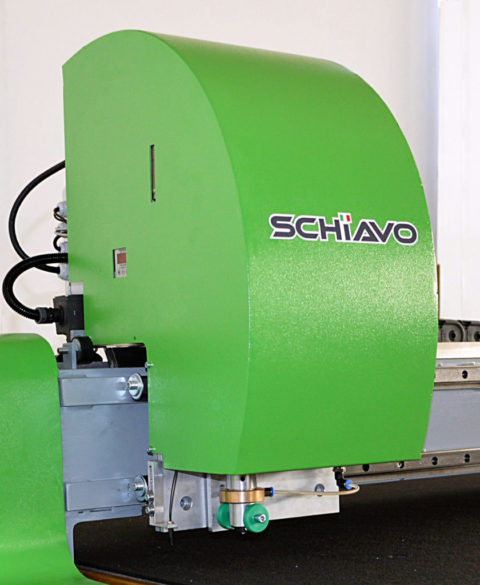

Cutting bridge made up of steel and placed lengthwise to the machine and it is set in motion by Brushless motors.
Cutting pressure is adjusted in accordance with glass thickness through the operator.
Lubrication system for cutting tool.
All the movement are controlled by CNC numerical control and the transmission is by rack and pinions.
N° 2 breaking bars (1 transversal + 1 longitudinal) activated pneumatically.
PC and cut optimization software by Perfect Cut included.
|Maximum glass dimensions:||3700×2600 mm|
|Working height:||900±20 mm|
|Tolerance:||± 0,2 mm|
|Air fan:||N° 1|
|Tilting arms:||4, Pneumatic|
|Air compressed:||6-7 bar|
|Standard voltage:||400 V – 50 Hz|
|PC and workstation:||Included|
