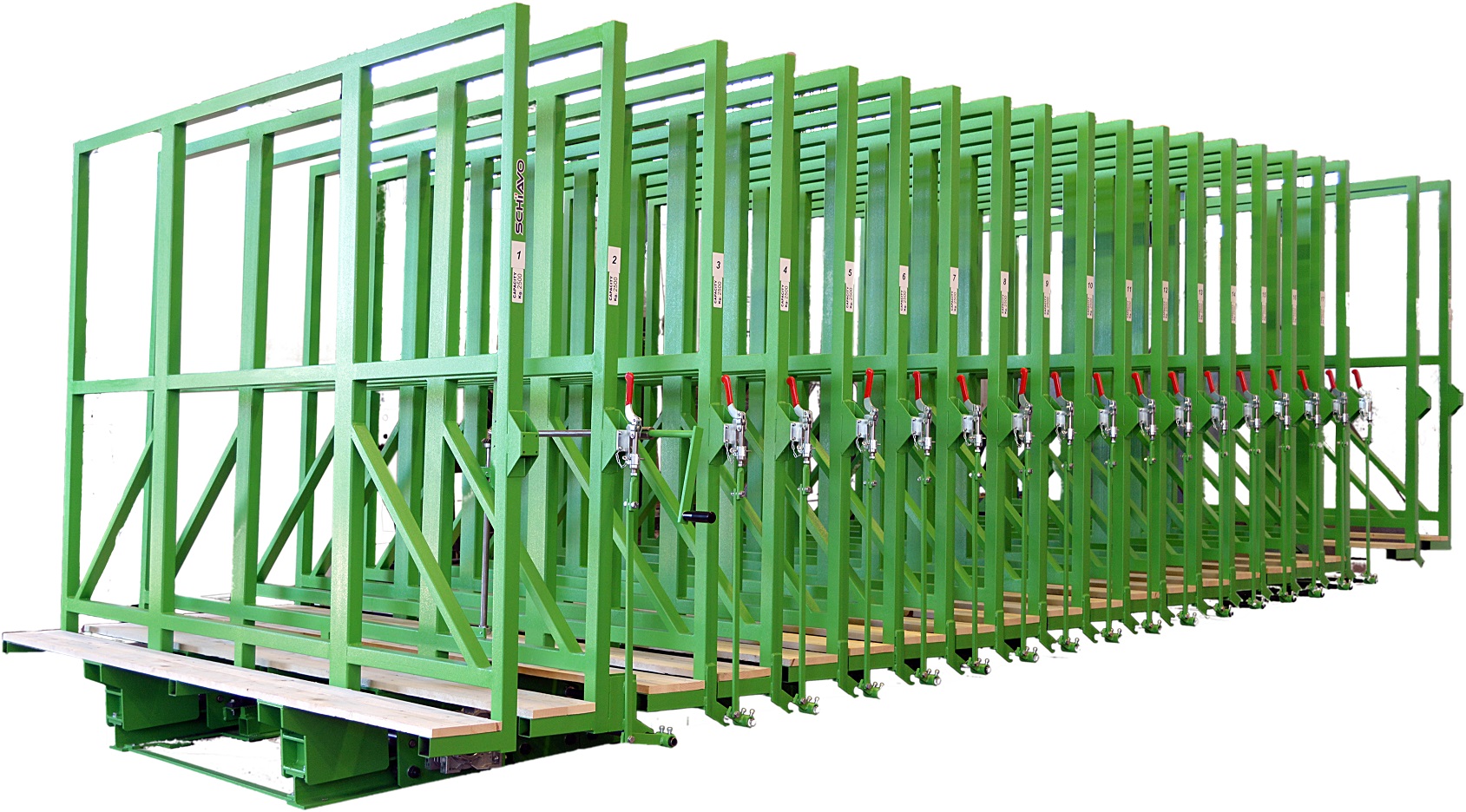

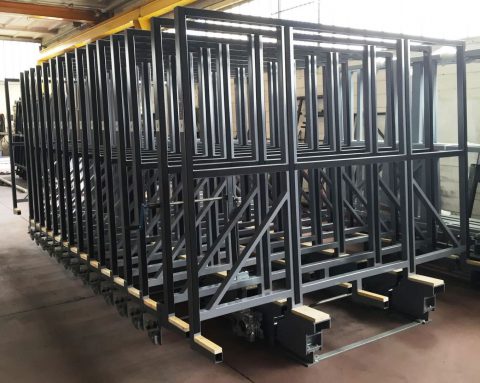

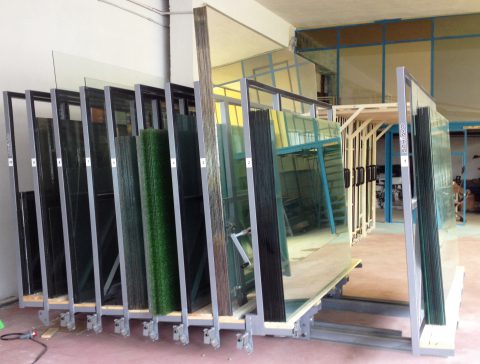

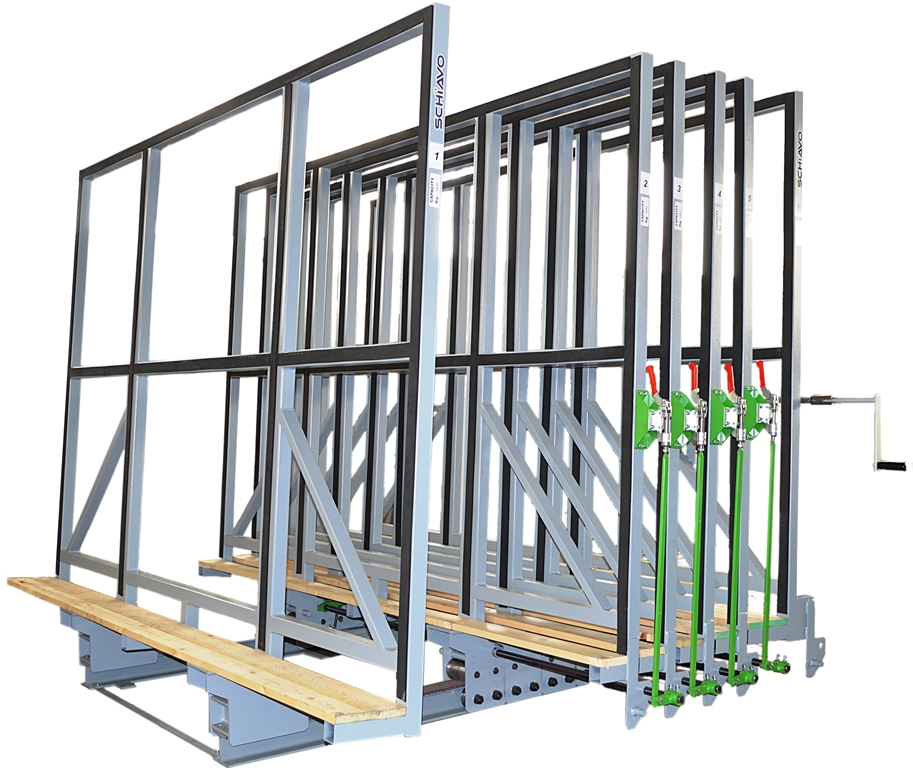

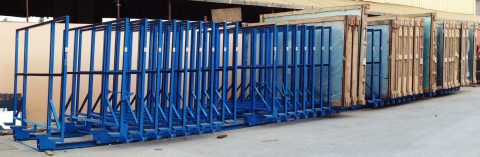

CLO3300B Lateral manual glass storage system

Storage system for glass packages or sheets with lateral manual movement.

Storage system for glass packages or sheets with lateral movement.

First and last rack are fixed.

Manual movement by N° 1 handling on the second rack.

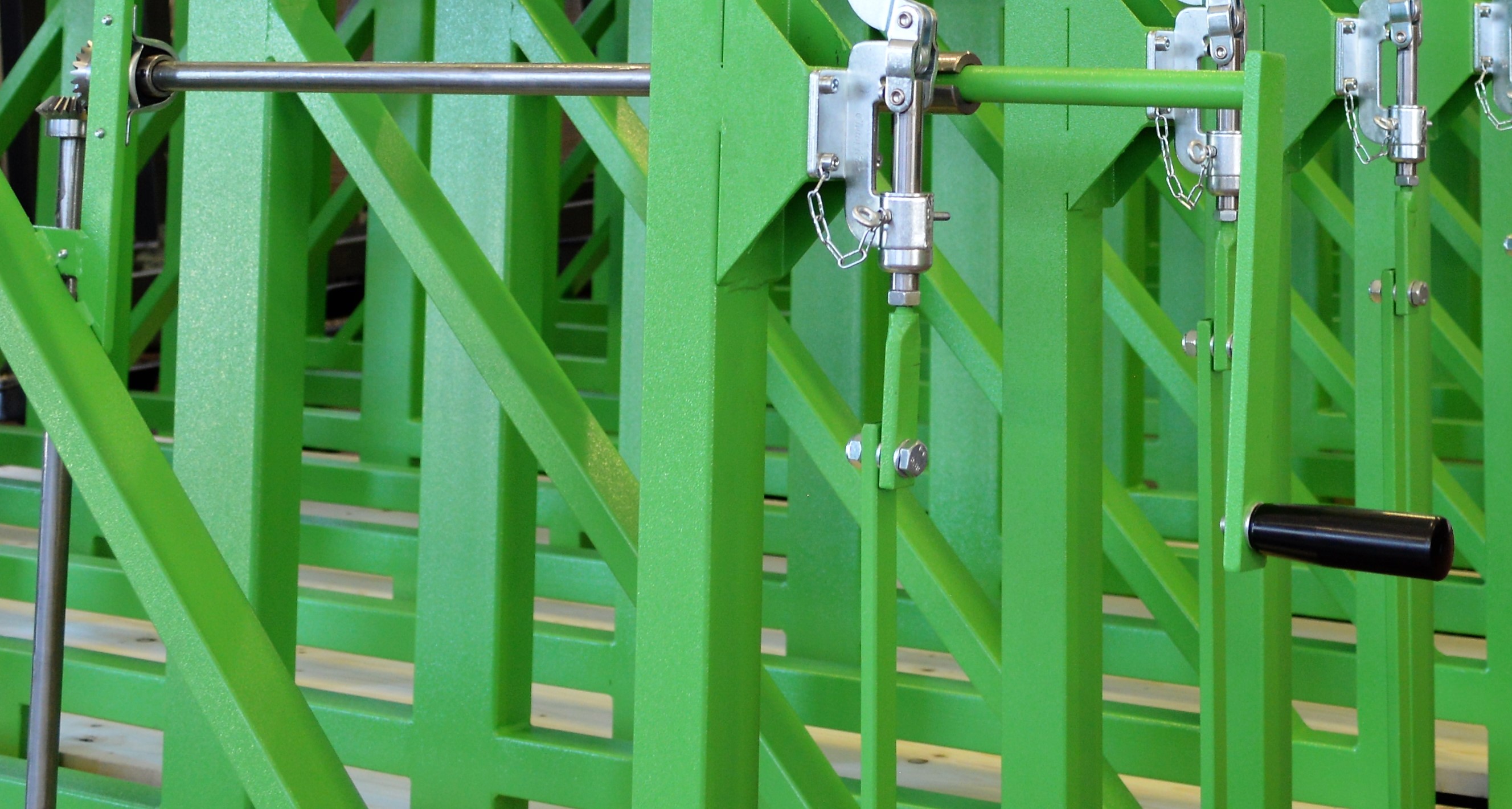

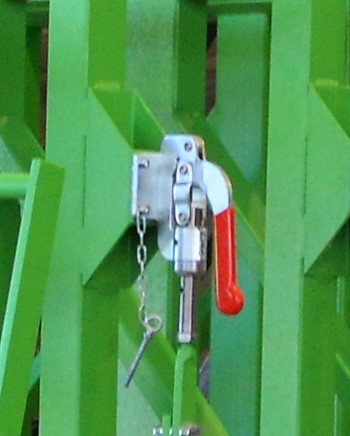

Rack selection by handle positioned on each rack side.

Rack inclination to the left or right, according to the needs of the client.

Loading up to 2500 Kg for each rack.

Max. glass dimensions (mm) 3300 x 2600 3700 x 2600* 3300 x 2600 3700 x 2600* 3300 x 2600 3700 x 2600*
Package thickness (mm) 220 150 110
Capacity per rack (Kg) 3000 2500 1800
