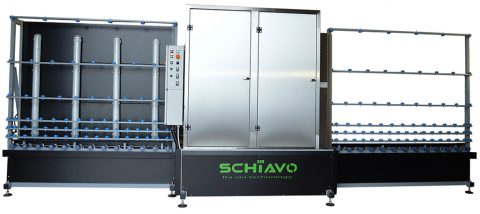

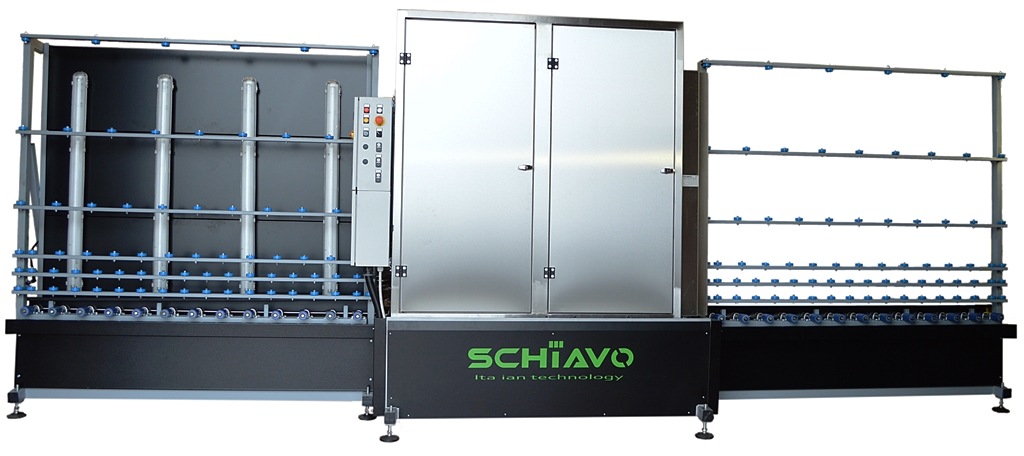

Simple and reliable vertical washing machine for everyday operations in glass processing.
Very reliable and very simple to use, the Easy series washing machines, are projected to guarantee a good quality machine with a competitive price.
With practically no maintenance costs and much of the technology and quality of higher range washing machines, Easy is the best choice for customers who need a good quality washing for the most common glass processing operations, keeping costs low.
|Max. Glass height:||1600 mm||2000 mm|
|Min. Glass Dimension (LxH):||350×250 mm||350×250 mm|
|Thickness:||3-12 mm (up to 19 mm without adjustment)||3-12 mm (up to 19 mm without adjustment)|
|Speed:||1-4 m/min||1-4 m/min|
|Working Height:||650 mm||650 mm|
|Inlet Rack:||1500 mm||2000 mm|
|Output Rack:||1500 mm||2000 mm|
|Working direction:||right to left||right to left|
|Voltage:||400 V – 50 Hz (3 Phases+ T+ N)||400 V – 50 Hz (3 Phases+ T+ N)|
|Commands Voltage:||24 V||24 V|
|Power:||7 Kw||10 Kw|
|Back Brushes:||0.2 µm Bristle||0.2 µm Bristle|
|Front Brushes:||0.2 µm Bristle||0.2 µm Bristle|
|N° Air Knives:||2||2|
|N° Water tanks:||2||2|
|Ø Brushes:||120 mm||120 mm|
|Overall Dimension:||5000x1800xh2300 mm||6000x2000x2900 mm|
Contact us for more information
