Glass package unloader mod. GR30 / GR60 / GR60A

Category:

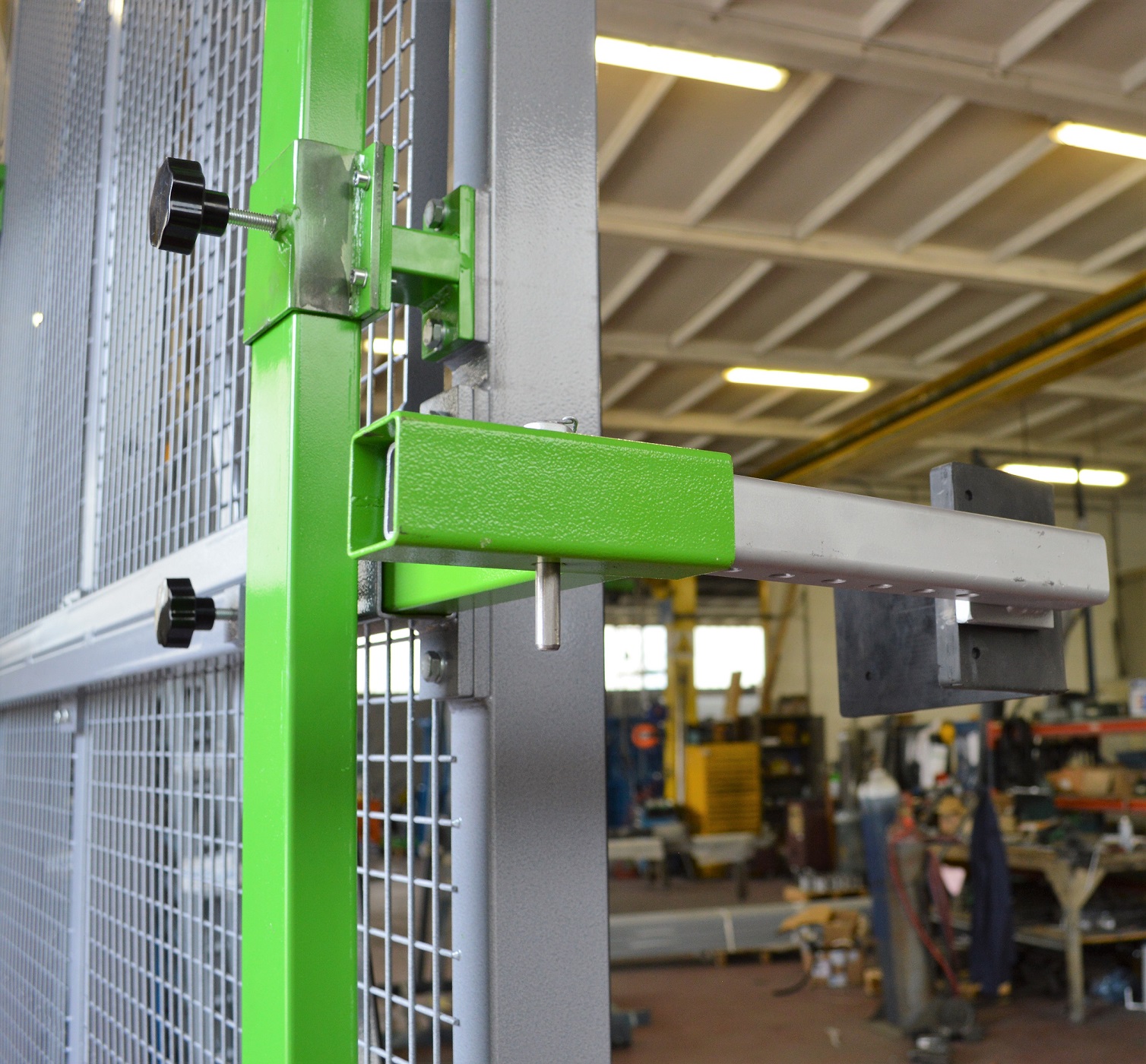

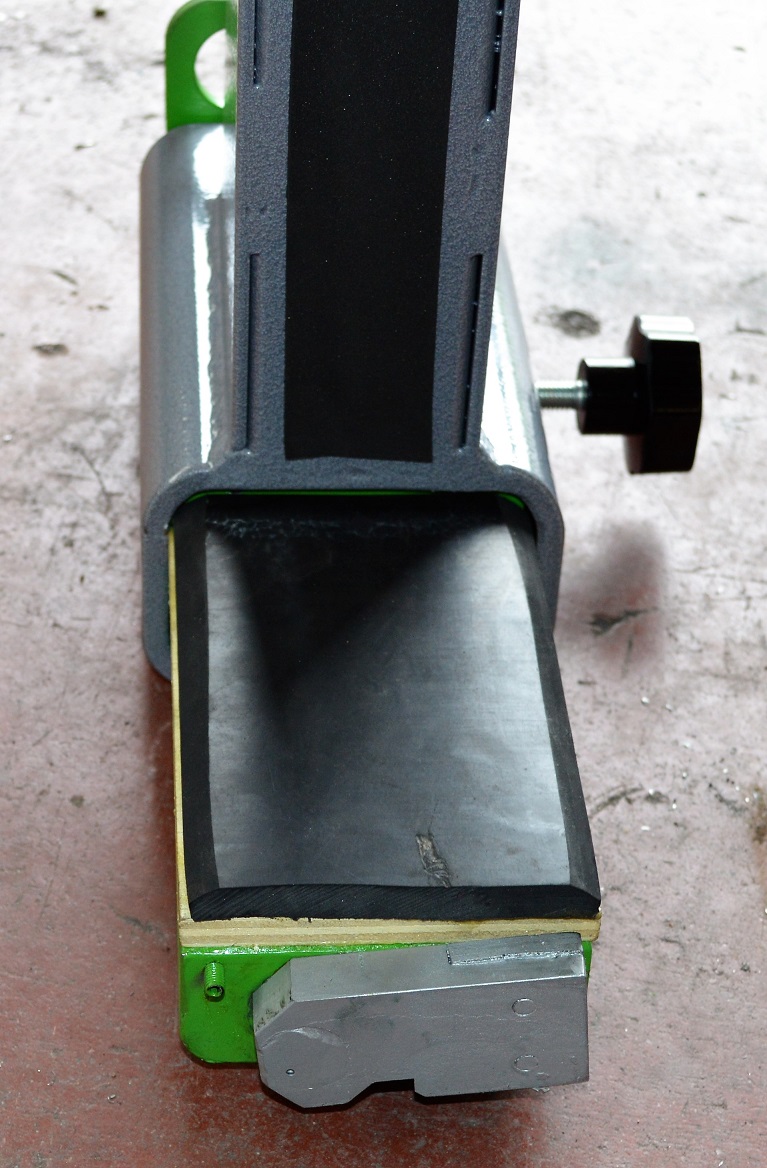

Equipment for handling glass packs, provided with lower supports, side and upper brackets to grip the glass packs.

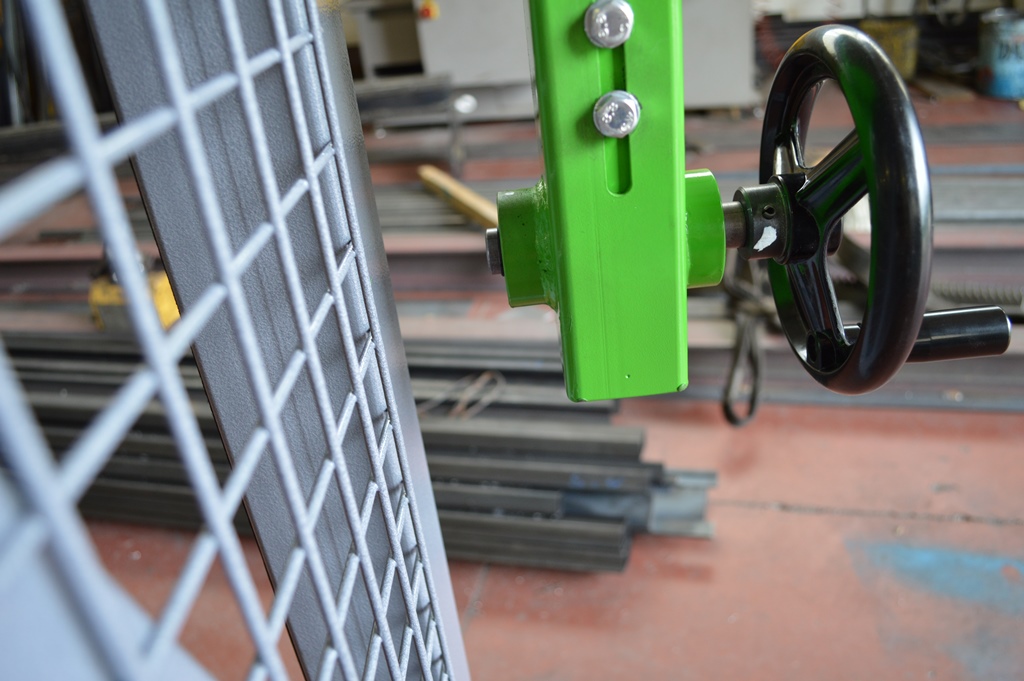

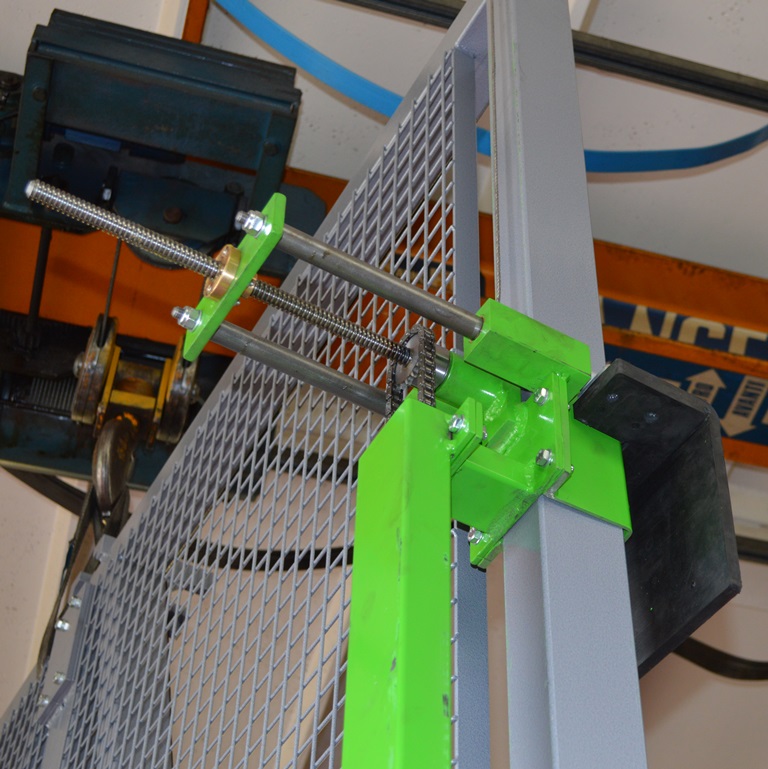

Wheel handle for glass package thickness adjustment.

Easy to adjust.

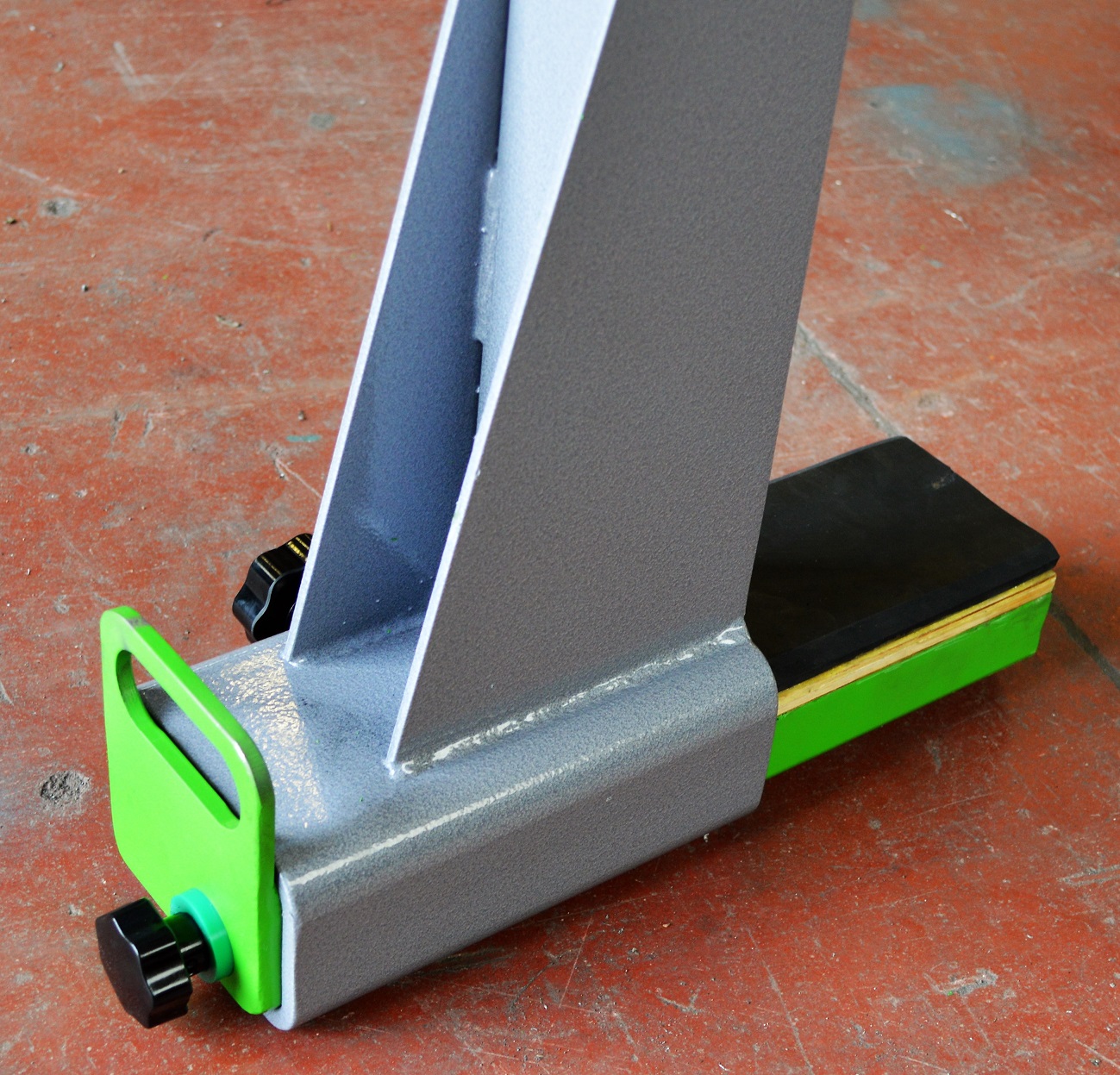

Adjustable support feet (GR60A).

Features GR30 GR60 /GR60A
Max glass dim.(LxH): 3300X2600 mm 6000×3300 mm
Min glass dim.(LxH): 2000×2000 mm 2600×2000 mm
Lower support: 220 mm 150 mm
Capacity: 3000 Kg 6000 Kg
Weight: 300 Kg 380 Kg
