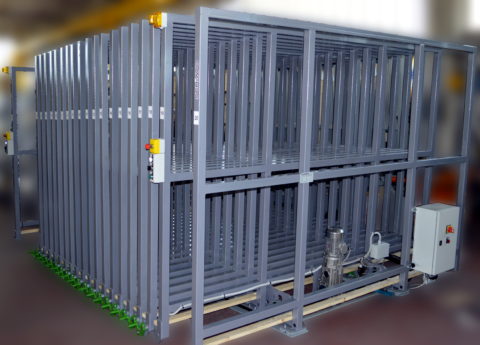

Semi-automatic glass storage system mod. UCS3300-S Ultra-compact

Ultra-compact storage system for glass sheets Patented by Schiavo.

This is the new patented storage system for glass packages or single glass sheets with lateral movement.

The movement of the racks is perfectly uniform and smooth, without oscillations.

The glass support can be very short, up to 40 mm, but the rack is very stable without fluctuations during the movement.

This storage system is also very compact, only 100 mm per rack.

Selection of the drawer by pedal placed on the lateral side of the rack frame.

The storage system is composed by N° 1 gear motor controlled by inverter. First and last rack fixed. Opening to withdraw the glass sheet. Electric box positioned on the last drawer.

Max. glass dimensions (mm) 3300 x 2600 3700 x 2600* 3300 x 2600 3700 x 2600* 3300 x 2600 3700 x 2600* 3300 x 2600 3700 x 2600* 3300 x 2600 3700 x 2600*
Package thickness (mm) 220 150 110 60 40
Capacity per rack (Kg) 3000 2500 1800 1300 1000
