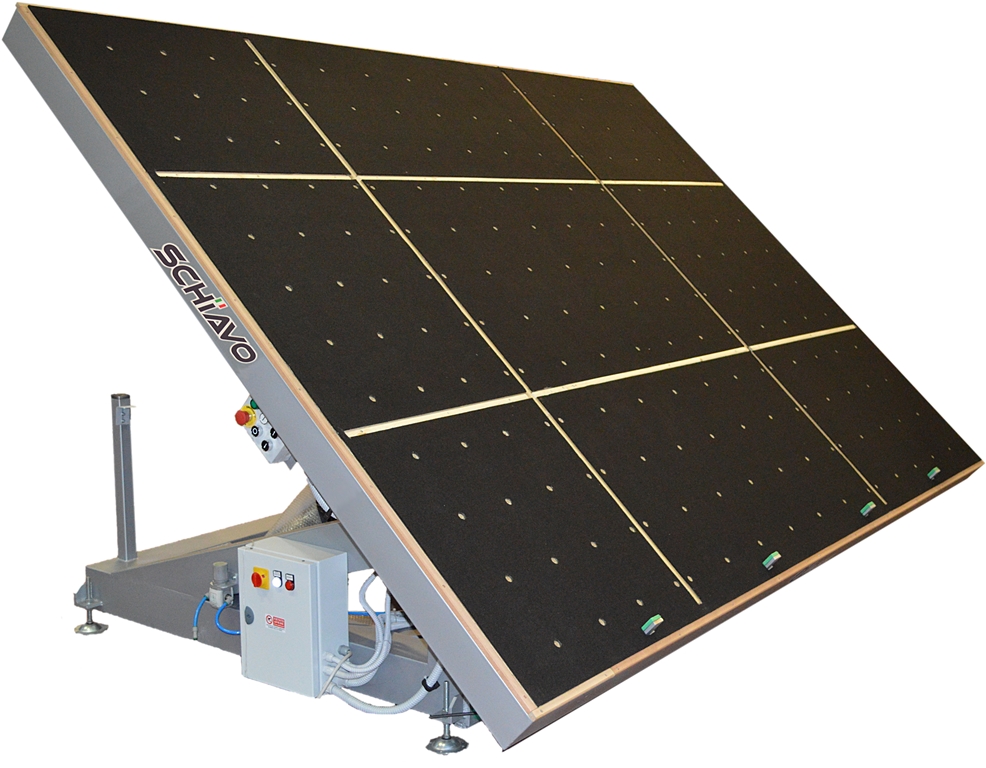

TCA100 / TCA101 / TCA102 air cushion manual cutting and breaking tables

Cutting table for manual glass cutting.

Strong electro-welded structure and work surface with air cushion.

Fixed or tilting plain, hydraulic or pneumatic.

N° 2 vertical and N° 1 horizontal breaking bars pneumatically operated.

N° 4 wheels with brakes for movement.

Model Glass dimensions Tilting Air pressure Power
TCA100 3300 x 2600 mm 6-7 bar 2,2 kW
TCA101 3300 x 2600 mm Pneumatic 6-7 bar 2,2 kW
TCA102 3300 x 2600 mm Hydraulic 6-7 bar 3 kW
