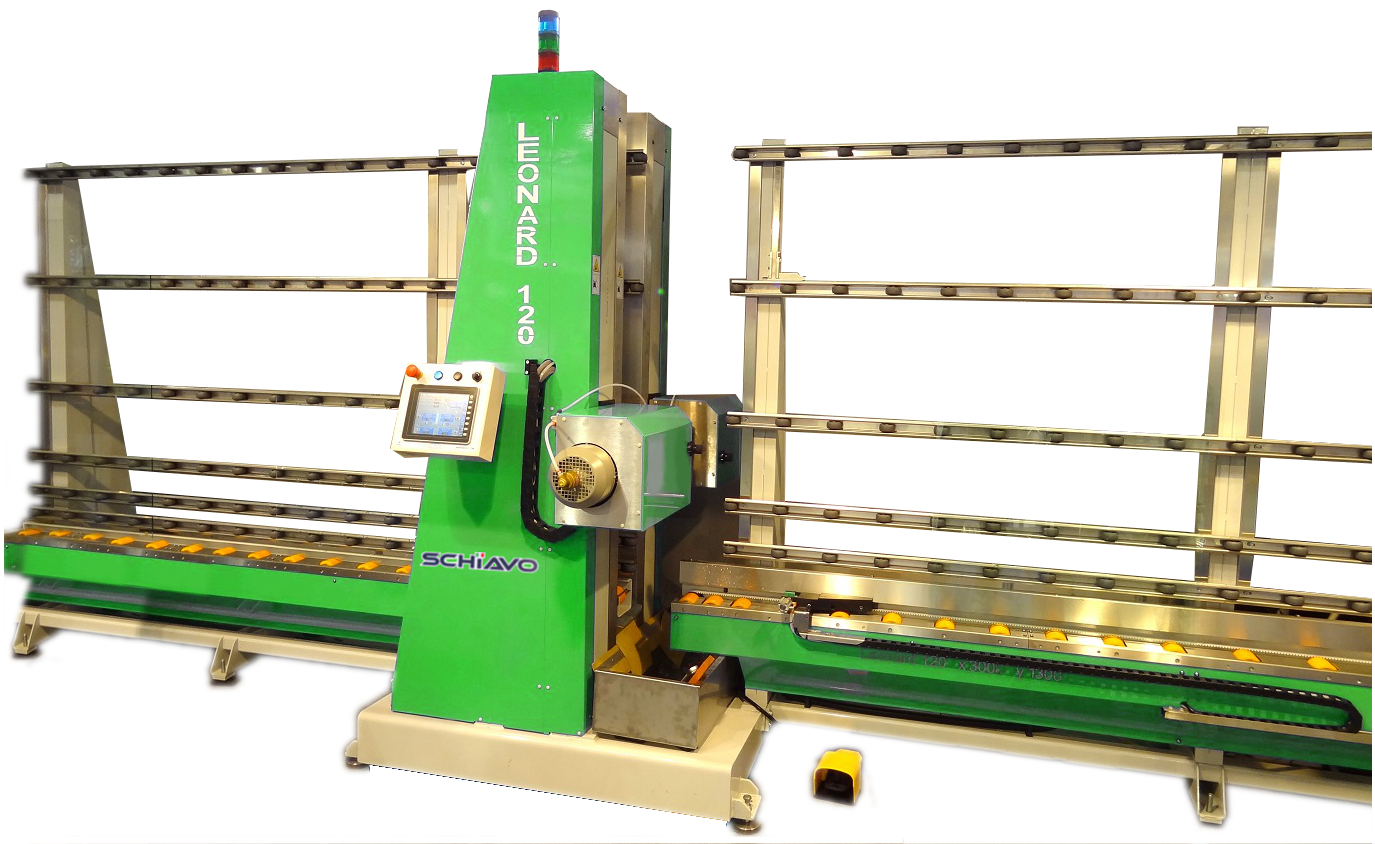

Automatic Vertical Driller mod. Leonard 120

Automatic CNC vertical drilling machine

Category:

Fully automatic vertical drilling machine with N° 2 with opposing bits.

Open top machine with sturdy iron structure.

Electro-spindles on high precision linear guides.

Spindle speed controlled by inverter.

CNC to control all the machine movements.

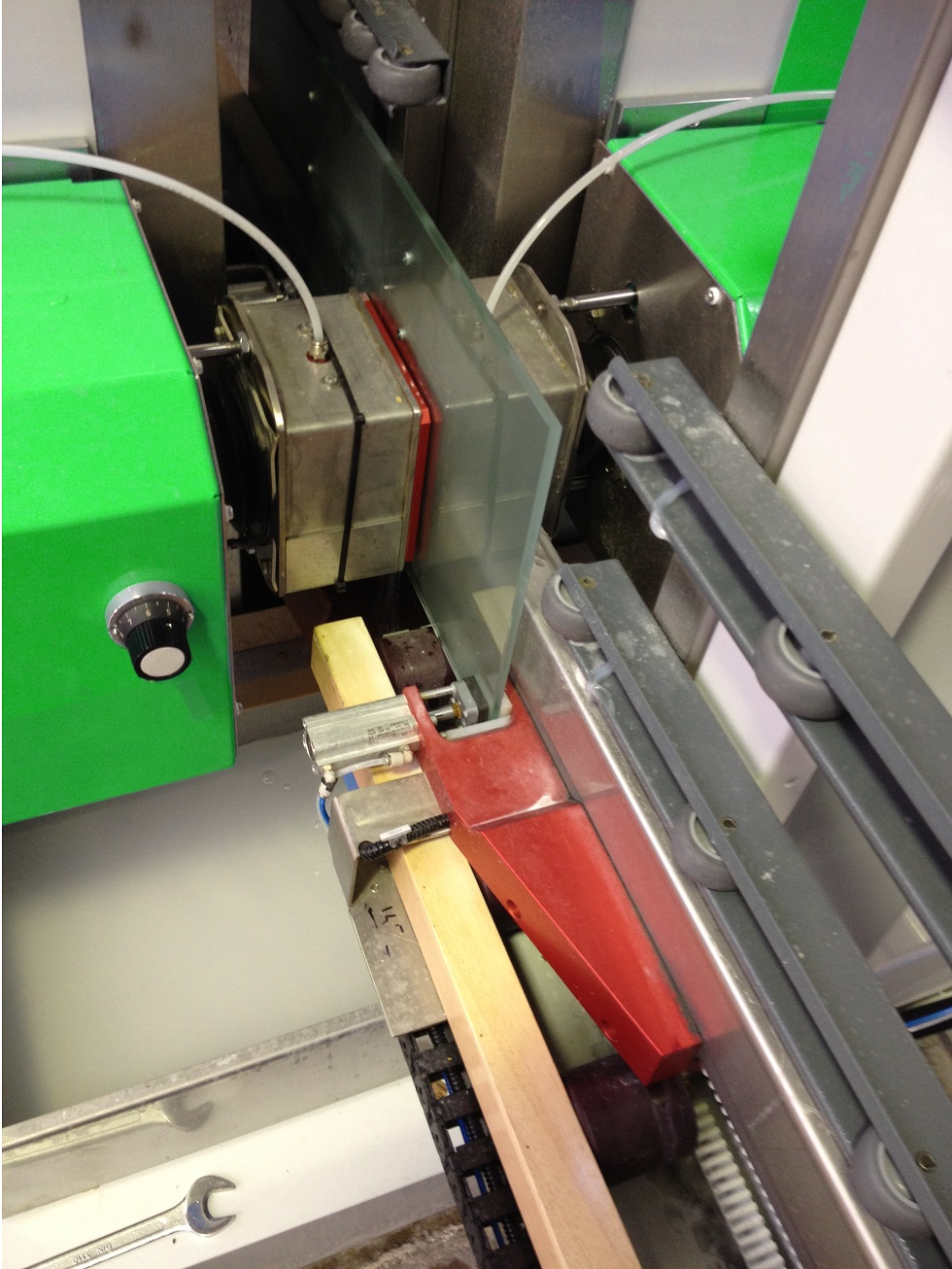

Pneumatic clamp for the X positioning of the glass.

Spindle Y positioning set in motion by gear motor and belts.

Manual tool change.

Tank for water recycle. PLC with memory for 40 programs.

Position: Vertical
Max. glass dimensions (LxH): 4500×2500 mm
Min. glass dimensions (LxH): 450×150 mm
Max. hole position / distance from edge: 3000×1600 mm
Max. glass weight: 500 Kg
Min. hole diameter: 2 mm
Max. hole diameter: 80 mm
Glass thickness: 3 – 30 mm
Inlet Conveyor: 2000 mm
Outlet conveyor: 1600 mm
Spindle power: 2,2 kW
Spindle speed: 0-4200 rpm
Drilling tool length: 75 mm
Power: 8,5 kW
Voltage: 400 V – 50 Hz
Weight: 1800 Kg
Overall dimensions (LxWxH): 4300x1500x2400 mm
