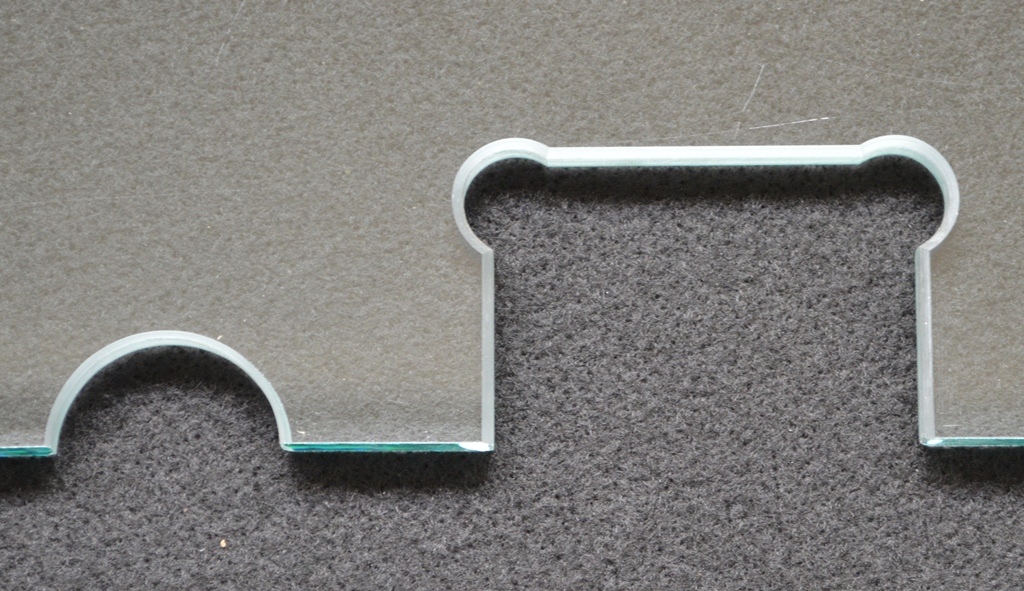

Milling and counter-sinking machine to obtain the notches of door hinges and fittings.
Specifically designed for the milling and counter-sinking operations required to obtain the notches of door hinges and fittings.
The machine body consists in a high speed 3-axis single spindle driven by ball screws controlled by a CNC with touch screen panel. The milling is cooled by external water flows and by a water flow inside the tool.
Three (3) available working heights, 200, 600 and 1000 mm.
|Glass Thickness:||6 – 19 mm||(15/64″-3/4″)|
|Working area (LxH):||200×200 / 600 / 1000 mm||(7,8″-7,8″ / 23,4″ / 39″)|
|Min Workable piece (LxH):||500×300 mm||(19×12″)|
|Max Glass size (LxH):||3210×2400 mm||(126″x95″)|
|Installed Power:||8,0 KW|
|Spindle MAX Speed:||10.000 RPM|
|Working height:||800 mm||(31,5″)|
|Overall Dimensions (LxWxH):||4300x1300x2200 mm||(169x51x86”)|
|Milling tool Length:||75 mm||(3″)|
