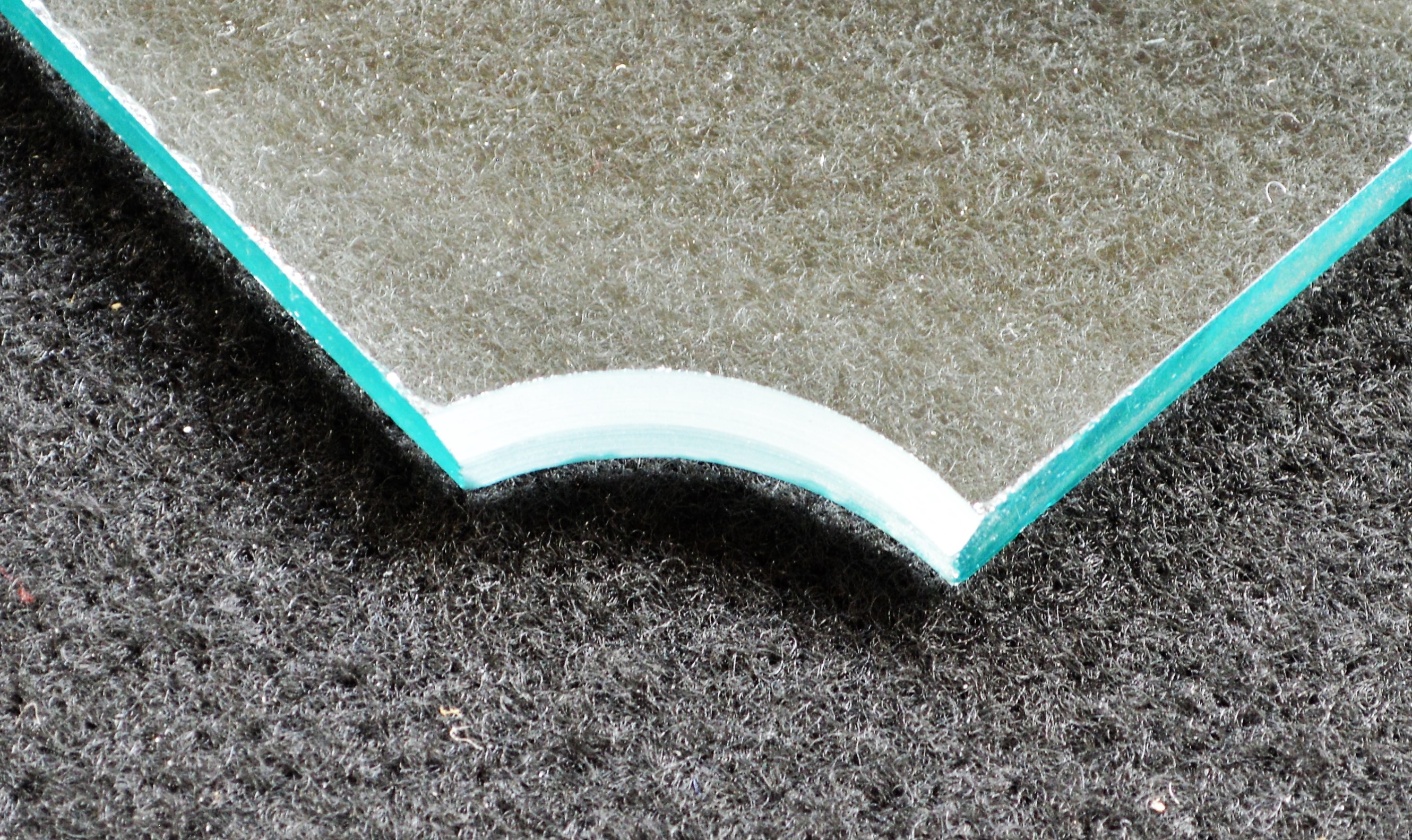

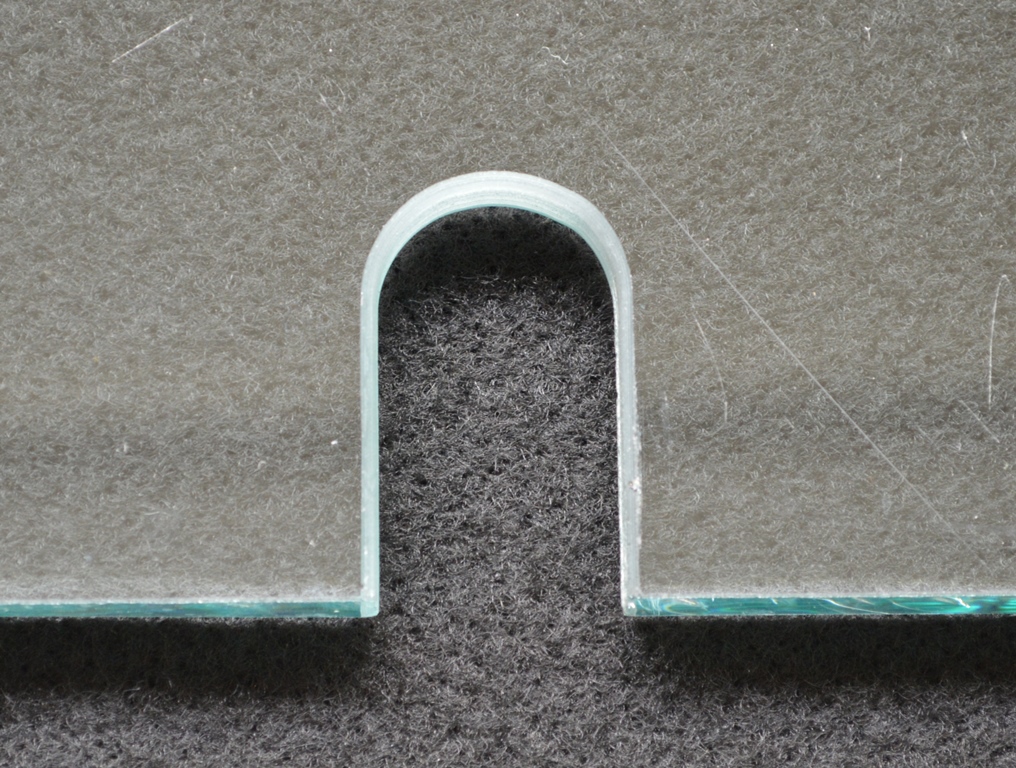

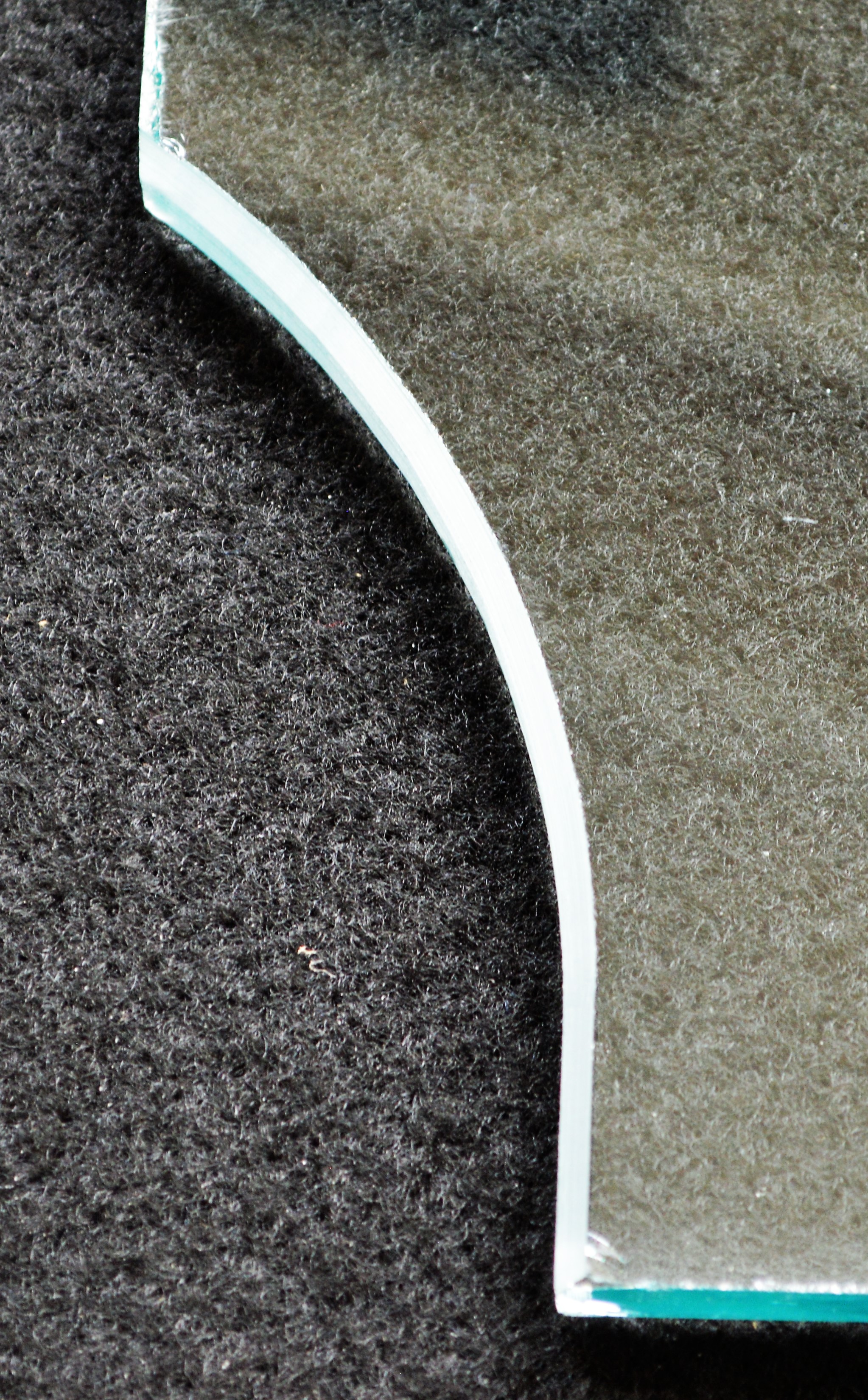

Vertical Glass Milling, drilling and counter-sinking machine to obtain the notches of door hinges and fittings.
FV1000 is a 4-axis CNC machine designed for producing holes, inserts and countersinks. High speed and precision processing. Automatic stop positioning for automatic X measurement.
The machine body consists in a high speed single spindle driven by ball screws controlled by a CNC. The processing is cooled by external water flows and by a water flow inside the tool.
|Glass Thickness:||4 – 25 mm||5/32″-31/32″|
|Working area (LxH):||200×1000 mm||7,8″x39″|
|Min Workable piece (LxH):||400×300 mm||15 3/4 x12″|
|Max Glass size (LxH):||3210×2400 mm||126″x95″|
|Installed Power:||8,0 KW|
|Spindle MAX Speed:||10.000 RPM|
|Working height:||800 mm||(31,5″)|
|Overall Dimensions (LxWxH):||4300x1300x2200 mm||(169x51x86”)|
|Milling tool Length:||75 mm||(3″)|
